How to Turn a Script Into a Storyboard Grid for AI Video
A storyboard grid is a planning document that turns one script scene into ordered visual beats: what happens first, what gets framed, what must stay continuous, and what a reviewer should approve before generation. It is not a rendering prompt. The grid owns scene and shot order; later image tools render the approved board.
Quick answer
To turn a script into a storyboard grid for AI video, isolate one scene, split it into visual beats, assign each beat a panel, then add framing, subject, action, continuity, and review notes. The goal is reviewable shot order, not final image rendering. Render with image tools only after the grid is approved.
Boundary: character bible, storyboard grid, rendering
Use the AI character bible to lock identity rules: face, voice, wardrobe, props, relationships, and state changes. Use this storyboard grid page to decide scene beat order, framing, prop visibility, and reviewable shot logic. Use the visual asset rendering guide after planning, when the approved grid is ready to become a rendered 3x3 board, shot reference, or visual asset.
Why a raw script is not enough for AI video
A screenplay contains dialogue, reversals, emotional turns, and scene logic. A video agent needs a narrower production contract. Without one, common failures show up fast:
- the model opens on the wrong subject, so the scene hook is buried
- two dialogue beats collapse into one generic reaction shot
- a payoff prop appears too late, disappears, or changes hands
- the reveal lands in the wrong panel, weakening the turn
- the exit direction flips, breaking continuity for the next shot
- the scene looks polished but cannot be reviewed against the script
The storyboard grid prevents those failures by making shot order visible before any image or video run begins.
What a storyboard grid needs
At minimum, each panel or beat carries enough information for another teammate to review the scene without rereading the full script.
| Grid field | What it captures | Why it matters |
|---|---|---|
| Panel number | Exact beat position in the scene | Prevents the model or reviewer from reordering the turn |
| Script evidence | Line, action, or moment that justifies the panel | Keeps the grid tied to the screenplay |
| Subject and action | Who or what the viewer should read first | Stops vague "cinematic" panels |
| Framing note | Wide, close, over-the-shoulder, insert, reaction, or two-shot | Gives composition direction without becoming a render prompt |
| Continuity lock | Props, wardrobe, injuries, location, entrances, exits, or hand positions | Prevents drift between panels |
| Review question | The approval check for this beat | Makes weak panels easier to challenge |
If the grid does not carry those basics, it is usually too thin to help much.
How to turn a script into a storyboard grid
- Choose one scene instead of the whole screenplay.
- Mark the scene turn: reveal, reversal, decision, interruption, or exit.
- Split the scene into visual beats that can be seen, not internal thoughts.
- Decide which beats deserve panels and which beats are connective tissue.
- Add subject, action, framing, continuity locks, and one review question per panel.
- Check whether the final order still preserves the intended emotional turn.
- Only then hand the approved grid to image generation or video direction.
The role here is not to replace directing. It is to help drama teams convert story logic into pre-visualization material.

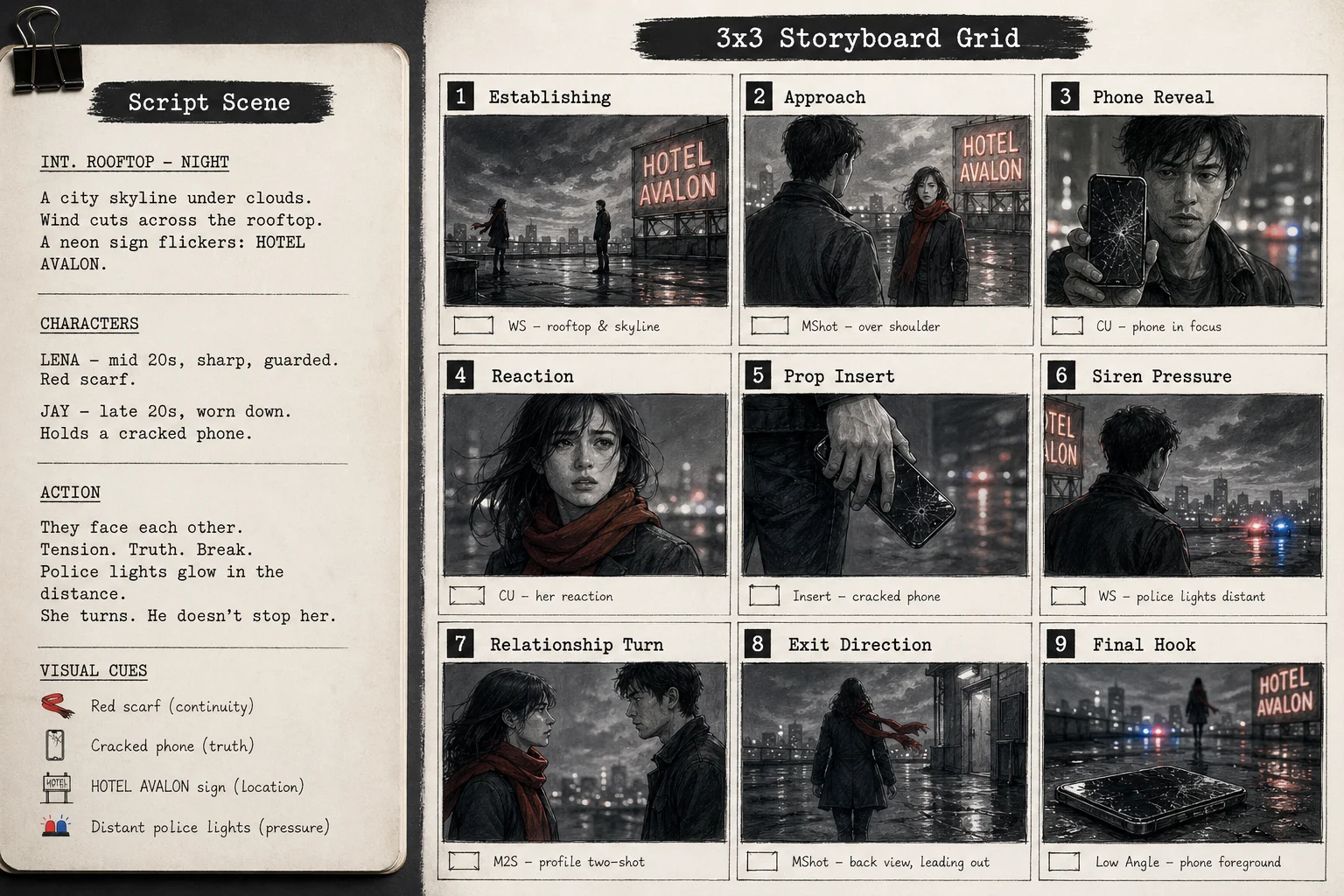

Example: one scene into four panels
Take a rooftop breakup scene in which one character reveals a hidden phone recording just as a police siren enters the background.
A solid storyboard grid might break that into four reviewable beats:
- the approach and standoff, with both characters placed on the roof edge
- the phone reveal, with the cracked screen and recording interface visible
- the reaction beat, with the red scarf and eye line preserved
- the exit under the siren, with direction of movement locked for the next scene
Each panel would also carry continuity notes for the red scarf, cracked phone, rooftop sign, and exit direction. That turns one dramatic scene into something the team can actually review before generation.
How to review the grid before video generation
Before moving into image or video tools, check:
- Does panel 1 establish the real situation, not just a pretty location?
- Is the reveal assigned to the panel where the script actually turns?
- Is the payoff prop visible early enough to feel earned later?
- Does every continuity lock belong to the right beat?
- Do entrances, exits, eye lines, and hand positions survive the sequence?
- Could another teammate approve or reject the grid without rereading the full scene first?
That review pass is one of the main reasons storyboard grids are valuable. It is faster to fix a weak grid than to diagnose a failed video run.
Render after planning, not during planning
The storyboard grid should not ask an image model to invent the scene. It should hand over approved shot order, character rules from the character bible, location constraints, and panel-level review goals. If the team needs a rendered contact sheet or shot reference board after this planning step, use the dedicated guide to render storyboards and visual boards.
Why this improves AI video agents
Storyboard grids improve AI video generation for three reasons.
First, they create sequence clarity. The model no longer has to invent the whole scene structure at once.
Second, they improve continuity. Character identity, props, and location logic can stay attached to specific beats.
Third, they make revision cheaper. A team can change a panel order or beat emphasis faster than it can regenerate an entire scene blindly.
Where Arcloop fits
Arcloop is a screenplay-first video agent. In that system, storyboard grids sit between script reading and visual generation.
Arcloop is exploring ways its video agent can use screenplay parsing and character or scene structure to inform:
- storyboard beat extraction
- panel planning
- continuity notes
- reviewable shot order
- video-ready direction notes
This is especially relevant for short drama, manga drama, comic video, and vertical episodic formats where shot order matters.
FAQ
What is a storyboard grid?
A storyboard grid breaks a scene into visual beats, then places those beats into a panel layout with notes for subject, action, framing, continuity, and review questions.
Why is a storyboard grid better than a raw video request?
Because it preserves sequence logic and gives the creator more control over what each visual beat needs to do.
Does this only apply to video generation?
No. Storyboard grids are also useful for internal review, image briefs, pitch decks, and shot reference planning. The grid still controls sequence, not final rendering.
How is Arcloop using storyboard planning?
Arcloop is exploring how its video agent can convert scenes into storyboard-ready beats before image or video generation.
Can storyboard grids help with consistency?
Yes. They make it easier to carry character, prop, location, entrance, exit, and reveal logic from one visual beat to the next.
